Intro#

As a result of user interest in running mwp on Windows 11 / WSL-G, here's an experiment to see if it's possible. By a Windows neophyte, so if I can install mwp on WSL, anyone can.

There is also an excellent you-tube video tutorial from Marc Hoffmann (in English and German).

Environment#

Tested with Windows 11 VM hosted on Arch Linux by the developer.

WSL Installation#

  • Installed default Ubuntu
  • Note that serial ports still don't appear to work in WSL (workaround described below)

Windows / WSL Pre-requisites#

None other than the serial port issue, Wayland (GUI) and sound just work. The serial port problem can be mitigated by a "serial to IP" solution; mwptools provides ser2udp for this purpose.

mwp Installation#

Use one of the following:

(a) Install the current release from github.#

  • Down load the .deb file
  • cd to where ever you saved the .deb file
  • In the wsl terminal sudo apt install mwptools_0.0.0-1_amd64.deb

(b) Unified first-time build script (build and install from source)#

For the inital install, there is a unified / simplified install / build / install script: Instructions

This install mwptools and blackbox-tools-inav to $HOME/.local/bin.

(c) Tradition build process (build and install from source)#

If you want more control over build options.

If git is not pre-installed in WSL, then it will be necessary to install it.

sudo apt update && sudo apt upgrade
sudo apt install git

Note: /etc/sudoers (via visudo) was edited to allows the WSL user to run commands as root without asking for a password.

Then it was just a case of cloning the mwp repository and following mwp's instructions (mwptools/docs/debian-ubuntu-dependencies.txt), to install the dependencies, thusly:

cp mwptools/docs/debian-ubuntu-dependencies.txt /tmp/u.sh
chmod +x /tmp/u.sh
# edit /tmp/u.sh for any optional items ...
sudo /tmp/u.sh Y # "Y" bypasses interactive query / responses

Then build and install mwp and optionally the blackbox tools (as mwptools/docs/debian-ubuntu-dependencies.txt). Build documentation.

For the optimal blackbox replay, install the flightlog2x tools, either from the Github release or build from source in Linux/WSL.

Running mwp#

There is no longer any need to mess around the DISPLAY or udev settings. No 3rd party X-server, Windows handles all the GUI.

One off changes#

  • WSL installs a very cut down icon theme that does not provide the all the system / standard icons used by mwp. Fix this by:

    sudo apt install adwaita-icon-theme-full

  • If you wish to replay blackbox / OTX / BulletGCSS logs, it is necessary to have an IPv6 definition of localhost; WSL's /etc/hosts does not provide this:

# updated in /etc/hosts for ipv6
::1   localhost ip6-localhost ip6-loopback

Note: This is caused by an unnecessary assumption in flightlog2x's fl2ltm which is corrected in flightlog2x release (> 0.11.0)

  • Then tell WSL to please not break your hosts file again
    ### Add the following entry to /etc/wsl.conf:
[network]
generateHosts = false
  • Due font differences, it is may be necessary to reduce the font scaling in the mwp 'Flight View' docklet.
gsettings set org.mwptools.planner font-fv 10
# if you still have resizing problems, try 9 ....

Then you are ready to run mwp.

mwp

Serial devices#

In order to use a serial device, it is necessary to run a "serial to IP" bridge on the Windows side. This application will need to be white-listed in the Windows firewall.

There are a number of existing solutions that may work; mwp provides a simple, dedicated ser2udp tool that works well.

Building mwp's ser2udp#

On the Linux/WSL side:

  • cd mwptools/src/samples/s2n
  • make ser2udp.exe
  • copy ser2udp.exe to the d̶a̶r̶k̶ Windows side

On the Windows side:

  • Use the Windows firewall settings to allow ser2udp.exe to accept UDP traffic.

  • Run ser2udp.exe ; it will autodetect your serial port. By default this listens on UDP port 17071, you can change this by supplying a second parameter, e.g., to use port 34567. In this case, either define the serial port or use auto (auto-detect).

    > ser2udp.exe auto :34567
## or just let ser2udp autodetect
> ser2udp.exe
External address: fe80::1439:d6de:efcb:97e1%7
External address: 172.29.32.1
    The colon is required to define an alternative port.

  • ser2udp will survive removal of USB devices and attempt to re-connect (e.g. if the FC is rebooted).

  • ser2udp will only attempt to acquire STM32 USB devices (0483:5740 vid:pid)
  • You need to terminate ser2udp when you're done with it (e.g. to use the inav configurator in Windows).

Using ser2udp in mwp#

  • We need to know the IP address (or have a hostname for) the Windows WSL endpoint. Fortunately this happens to be Linux's default gateway, so we can handle it fairly transparently.

It is easily automated by using the magic __MWP_SERIAL_HOST name in the serial device.

mwp -d udp://__MWP_SERIAL_HOST:17071
# recognised by other tools as well ...
cliterm udp://__MWP_SERIAL_HOST:17071

__MWP_SERIAL_HOST is resolved as:

  • If an enviroment variable $MWP_SERIAL_HOST exists, it is used; else
  • The default gateway (which on WSL in the Windows host IP) is used; else
  • It will fail, as the literal name is unlikely to exist as a resolvable host name (not even a RFC legal host name).

Thus:

  • For WSL and ser2udp, in mwp preferences, set the serial device to udp://__MWP_SERIAL_HOST:17071
  • Or in the shell, for some other scenario, export MWP_SERIAL_HOST=foobox.org in the event that you have a valid use case

Launch ser2udp and MWP in one go#

  • Create a new txt file in the same folder where ser2udp.exe is located and copy the following lines into that file:
    @echo off
echo Launching MWP Mission Planner
start wslg.exe -d Ubuntu mwp
echo Waiting for WSL System to boot up
timeout 5
echo Launching Serial to UDP Tool
start "Serial2UDP" cmd /c ser2udp.exe -verbose 1
exit
  • rename the file with any name and change the extension to .cmd
  • Create a shortcut anywhere on your PC or in C:\Users\<username>\AppData\Roaming\Microsoft\Windows\Start Menu\Programs to pin it to your Start Menu
  • Replace the shortcut symbol with the MWP icon from here

BATch file considerations#

  • The timeout value may need changing (or not be needed at all). YMMV.
  • Consider adding the /min to cmd to minimise the ser2udp window on startup.

Other packages for additional functionality.#

  • To replay blackbox logs, you need
  • inav blackbox tools, mandatory
  • flightlog2x / bbl2kml. Provides a much better blackbox replayer than the default shipped with mwp (and you can generate really pretty Google Earth files from blackbox / opentx / bulletgcss logs).
  • Terrain Analysis
  • Gnuplot. Check the installer script that it's enabled.

Summary#

  • Much, much better than the prior WSL instances, pity about the lack of support for serial ports (still). Overall, the seamless WSL-g experience is impressive.

Connection via ser2udp bridge#

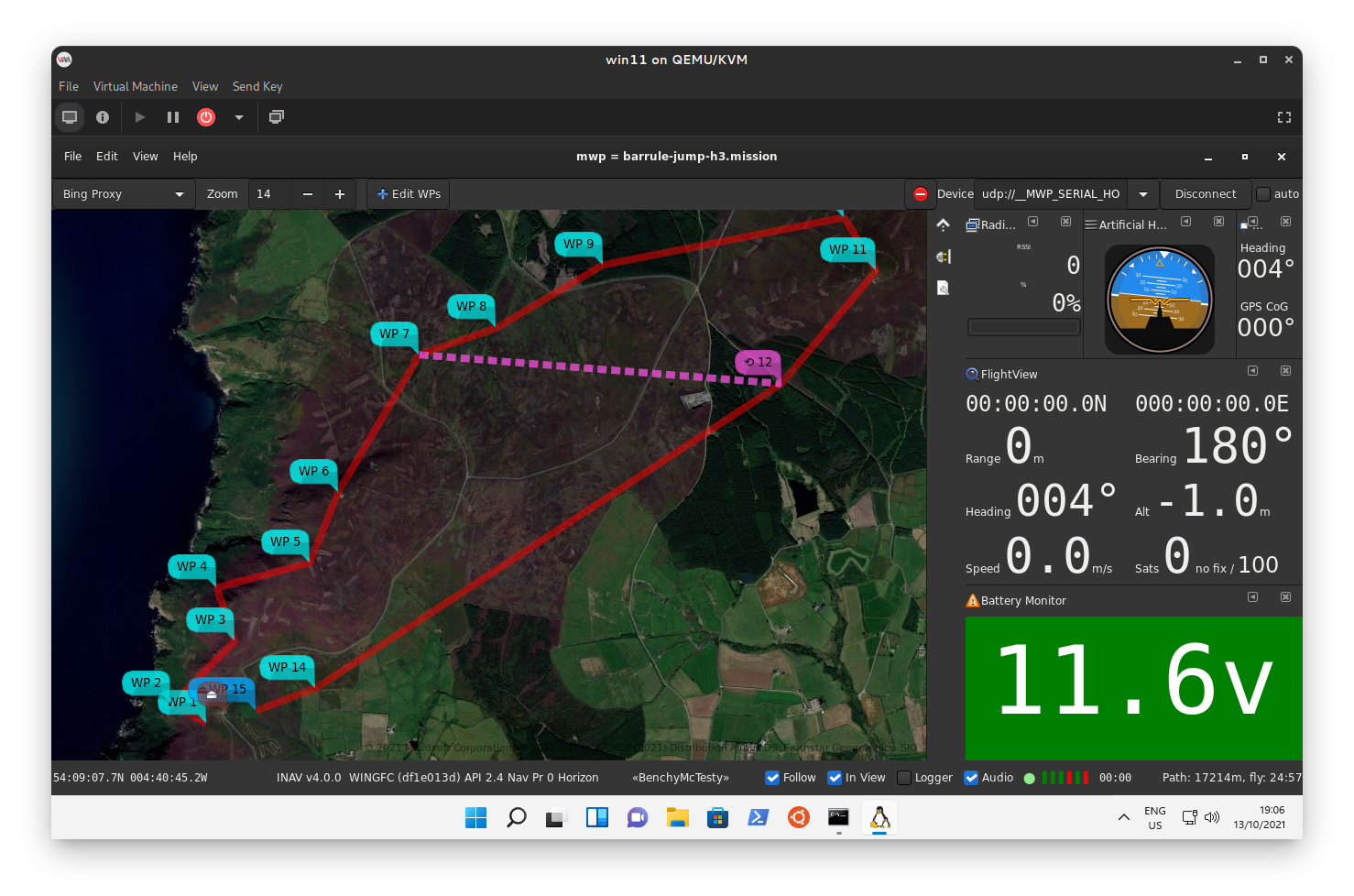

Connected Dark theme, correct system icons installed, connected to FC via ser2udp.

Terrain / elevation analysis#

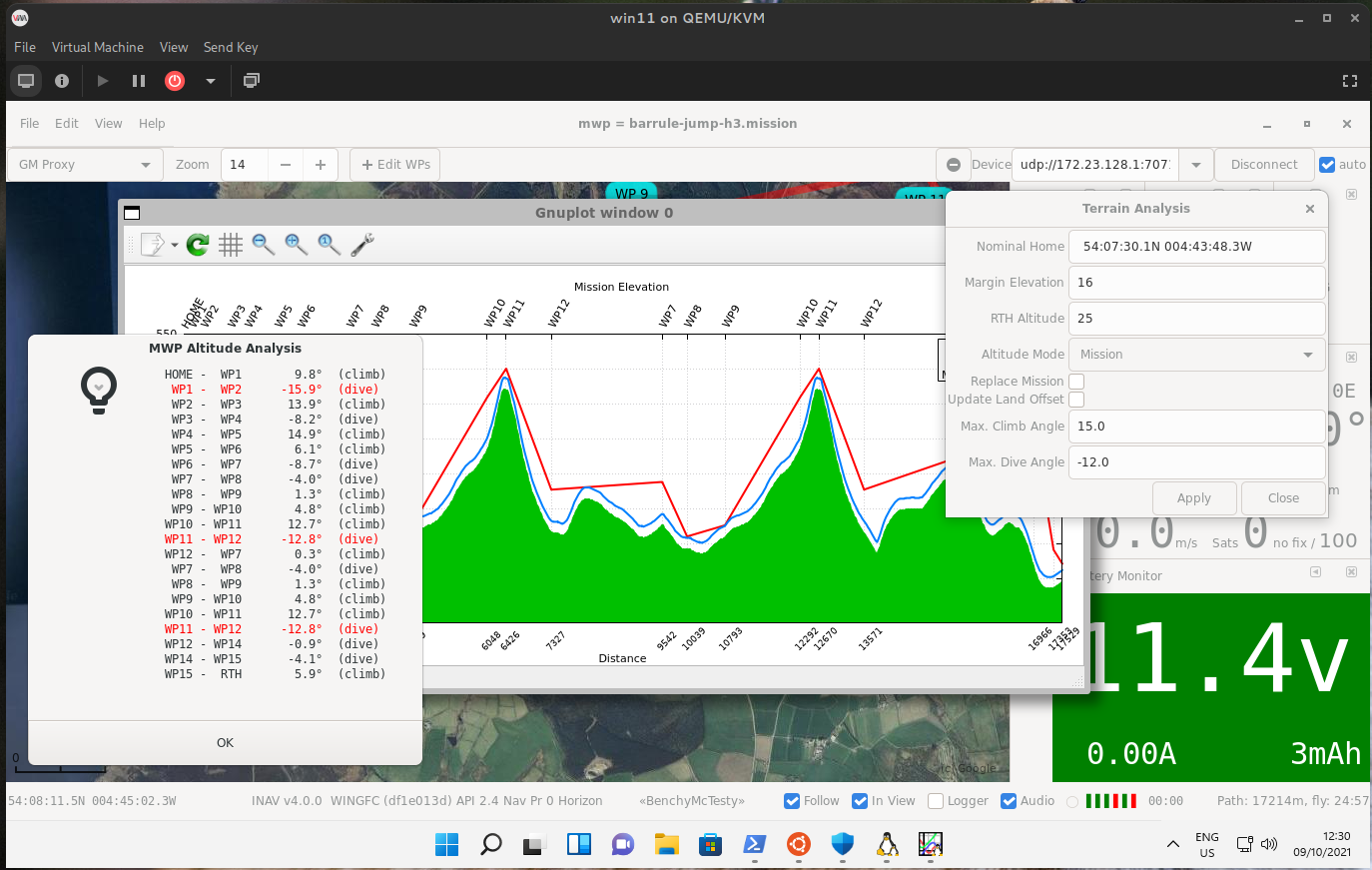

Terrain

Blackbox replay#

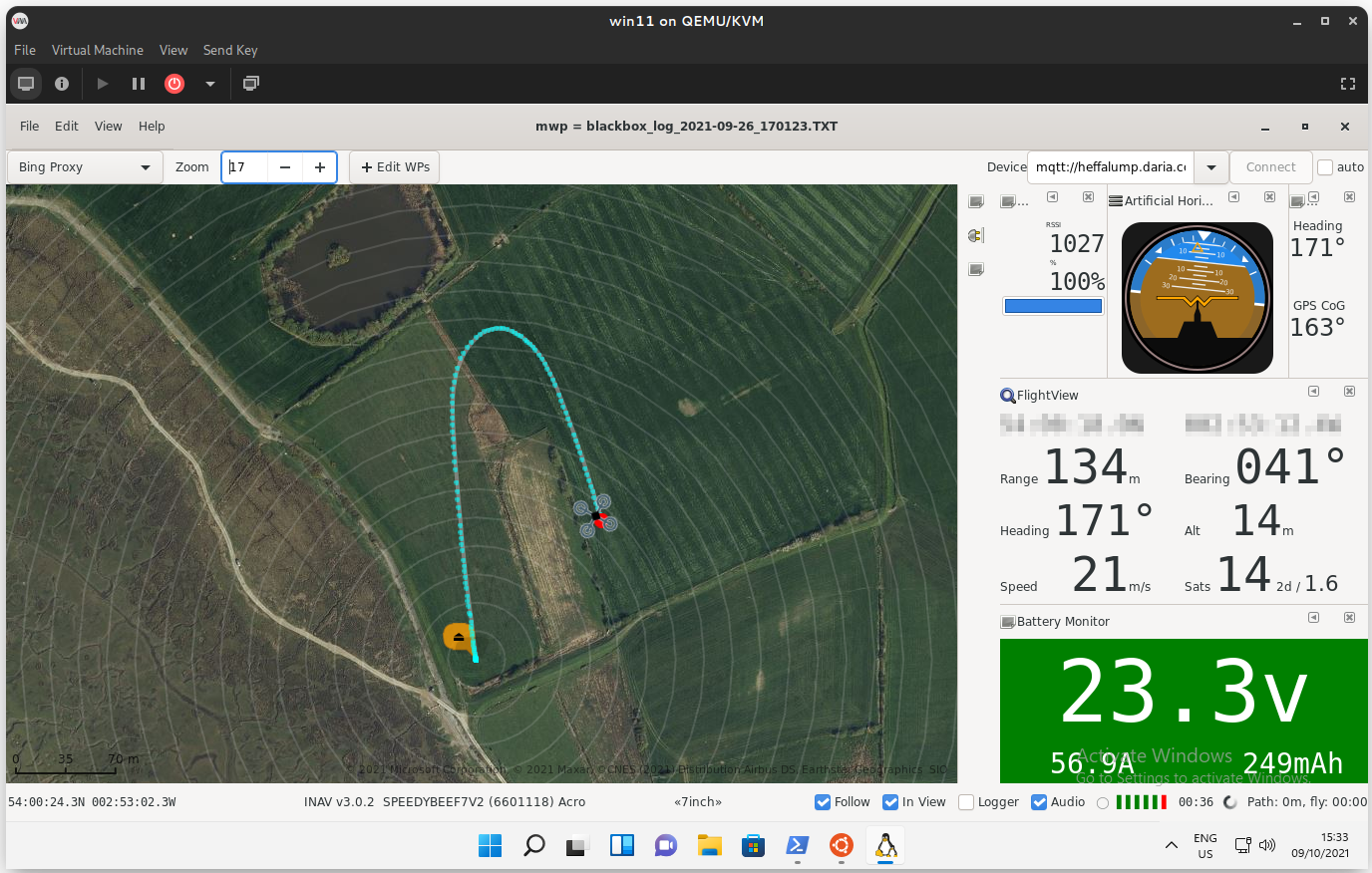

BBL

Good enough!

The user's compass seems good enough for navigation functions (top right widget comparing GPS CoG v. compass heading).
