in order to replay log files, mwp has a number of external dependencies, in particular the flightlog2x fl2ltm tool provided by the bbl2kml repository. As well as providing replay tools for mwp, you also get the facility to generate attractive animated KML / KMZ files for visualisation in google-earth.

mode view

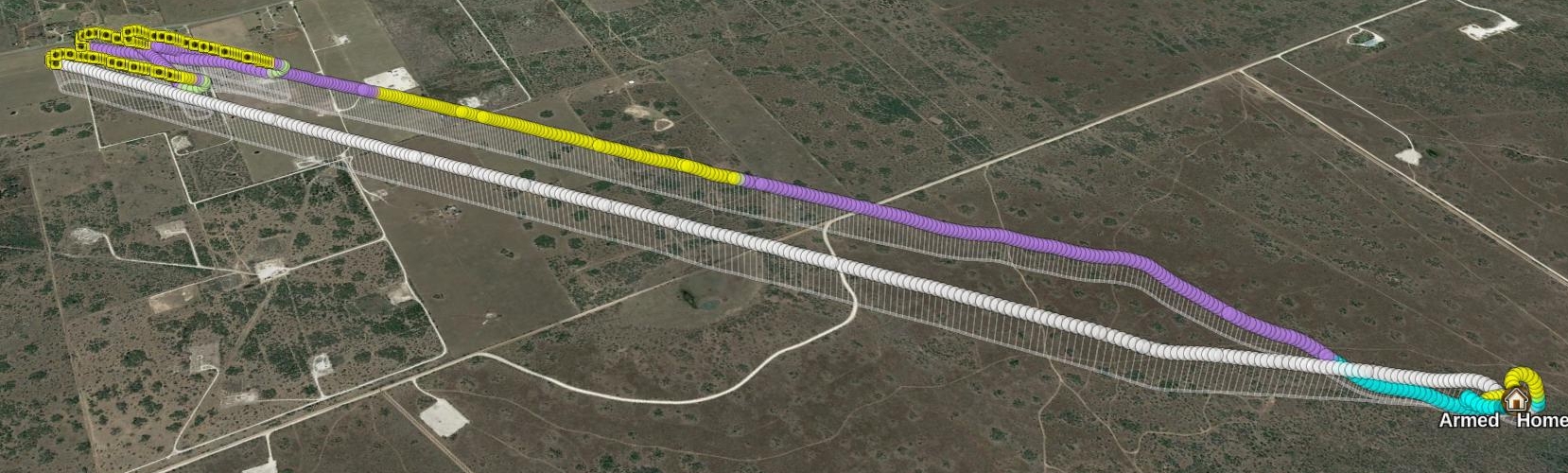

Flight mode view

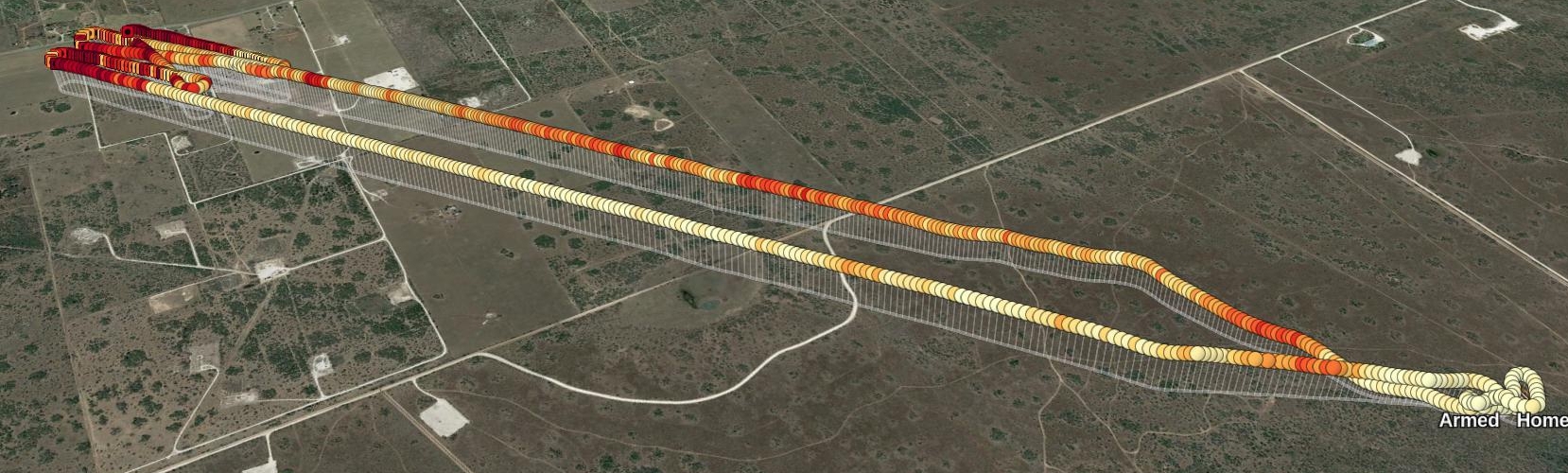

rssi view

RSSI view

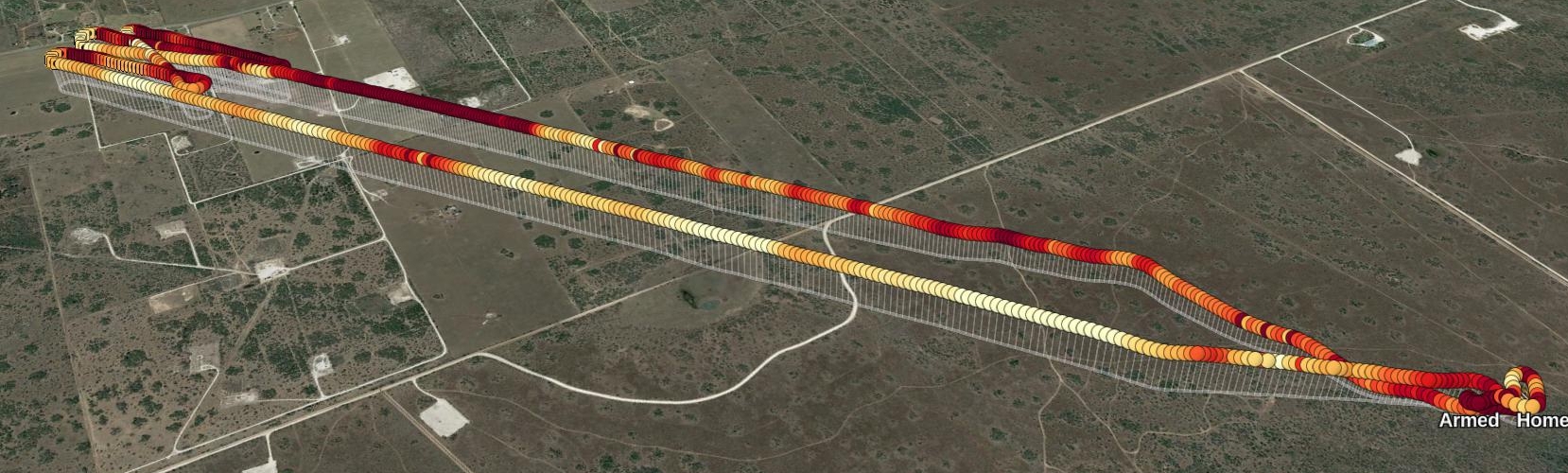

effic view

Efficiency view

Analysis

The RSSI view shows why the aricraft is playing "failsafe ping-pong" at the right extreme of flight

Binary packages are provided for many popular platforms.

Blackbox replay#

In order to replay blackbox logs, you additionally need inav blackbox tools, specifically blackbox_decode). Binary packages are provided for many popular platforms. The mnimum required version in 0.4.4, the latest release is recommended.

OpenTX / EdgeTX logs#

OpenTX enables the storage of telemetry logs on a transmitter's SDcard. These logs contain all the (Frsky) telemetry information transmitted from the flight controller.

mwp can replay these logs, in a similar manner to the replay of Blackbox or mwp logs, albeit with less detail and typically at lower data rates.

  • Enable Frsky telemetry on the FC
  • Enable telemetry logging on the TX
  • Post flight, transfer the log from the LOGS directory of the SD card to your computer
  • Replay the log using the Replay OTX Log (or Load OTX Log for a "fast-forward" rendering)
  • Limited support is available of TX logs from Ardupilot.

No addition software requirements.

BulletGCSS Logs#

Requires that mwp is built with MQTT support.

No addition software requirements.

Ardupilot logs#

Requires Ardupilot's mavlogdump.py and dependencies.

mwp JSON logs#

No addition requirements.
