Playing Video in mwp#

mwp provides support for live and recorded video. Use cases might include:

In ground station mode, for long range monitoring;
In ground station mode, in order to repeat the FPV feed to the mwp screen, presumably for the enjoyment of spectators;

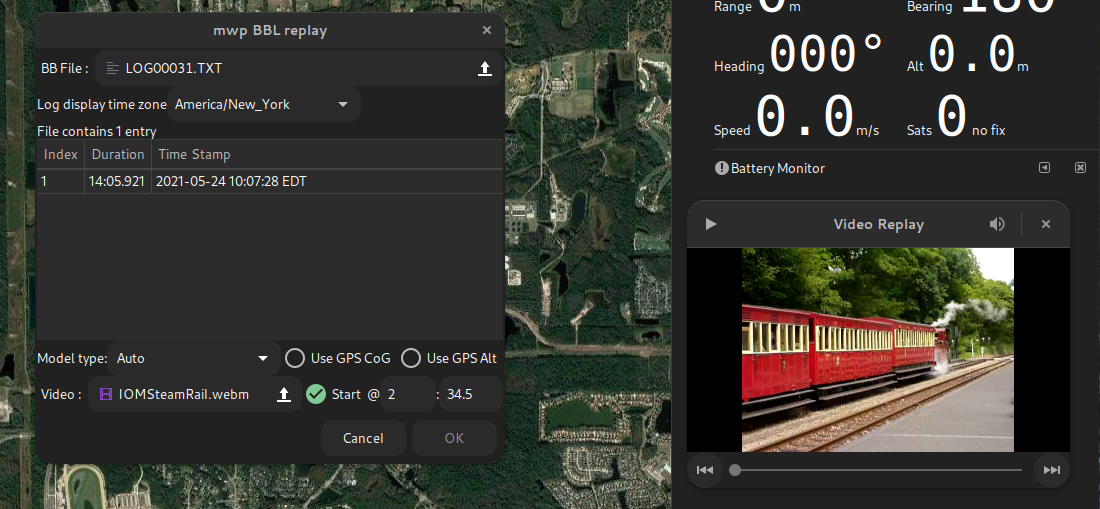

During Blackbox replay, to show the FPV recorded video during the replay.

Video may be played in either a separate window, or in an embedded pane (FPV Mode).

FPV View

Video Player Requirements#

mwp uses the open source GStreamer API to provide video playing. As well as any decoders / formats etc. to support the input stream, there is runtime dependency on the gstgtk4 Gstreamer plugin. This is available on modern operating systems and its package name is OS dependent, for example:

Arch and MSys2 : gst-plugin-gtk4
Debian (Sid / Trixie): gstreamer1.0-gtk4
FreeBSD: gstreamer1-plugins-rust
Void: gst-plugins-rs1

There is also a fallback video player for older OS (e.g. Ubuntu 24.04). This can also be used on Windows where the graphics driver fails (error message failed to share contexts through wglShareLists 0xaa) (any may crash mwp) using the gstgtk4 Gstreamer / OpenGL plugin.

The "fallback" video widget is based on `Gtk.Video':

Automatically detects missing gtk4paintablesink on Ubuntu 24.04 et al and uses the fallback player.
On Windows with "bad" graphics drivers (or to force the fallback widget anyway), fallback video requires that the new setting use-fallback-video is set to true.

Consequences of using the fallback video player:

On Windows and MacOS, no direct USB camera access
Higher latency (e.g. 2000ms on RTSP feeds)
Fewer video codecs available.

Legacy Images

The images this section are from legacy mwp, however the capability is the same.

Live stream mode (GCS)#

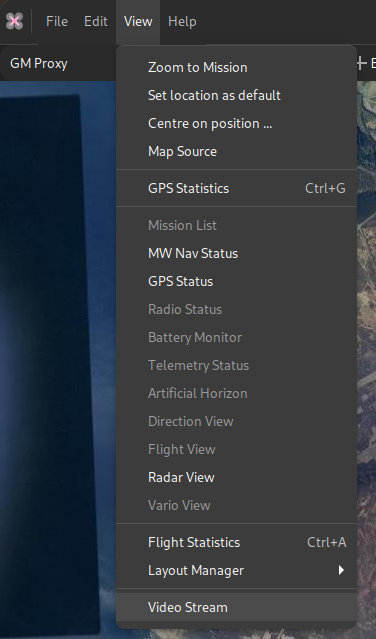

There is a Video Stream option under the view menu.

View Menu

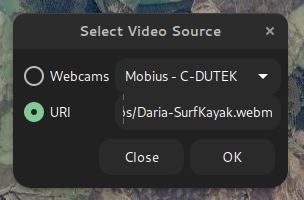

Selecting this option opens the source selection dialogue. Camera devices (i.e most webcams) will be auto-detected. There is also the option to enter a URI, which could be a http/https, rtsp or other standard streaming protocol, or even a file.

Chooser

The selected source will then play in a separate window. This window will remain above the mwp application and can be resized, minimised and moved.

In stream mode, there are minimal video controls; a play/pause button and volume control. Note the volume is that of the video, the overall volume is controlled by the system volume control.

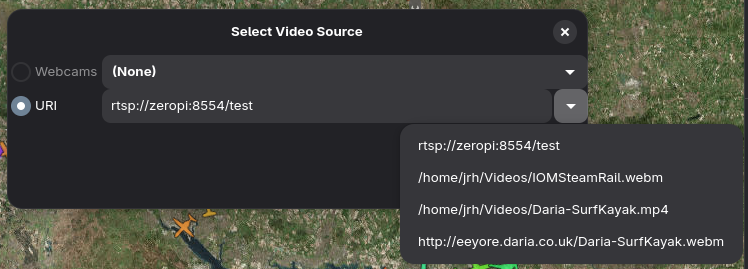

Up to 10 recent URIs are persisted. In order to access this list it is necessary to click the "expander" icon at the end of URI text entry box. The recent files list is stored in a text file ~/.config/mwp/recent-video.txt. This file may be maintained with a text editor if required.

In "FPV Mode", no controls are shown.

Camera Capabilities#

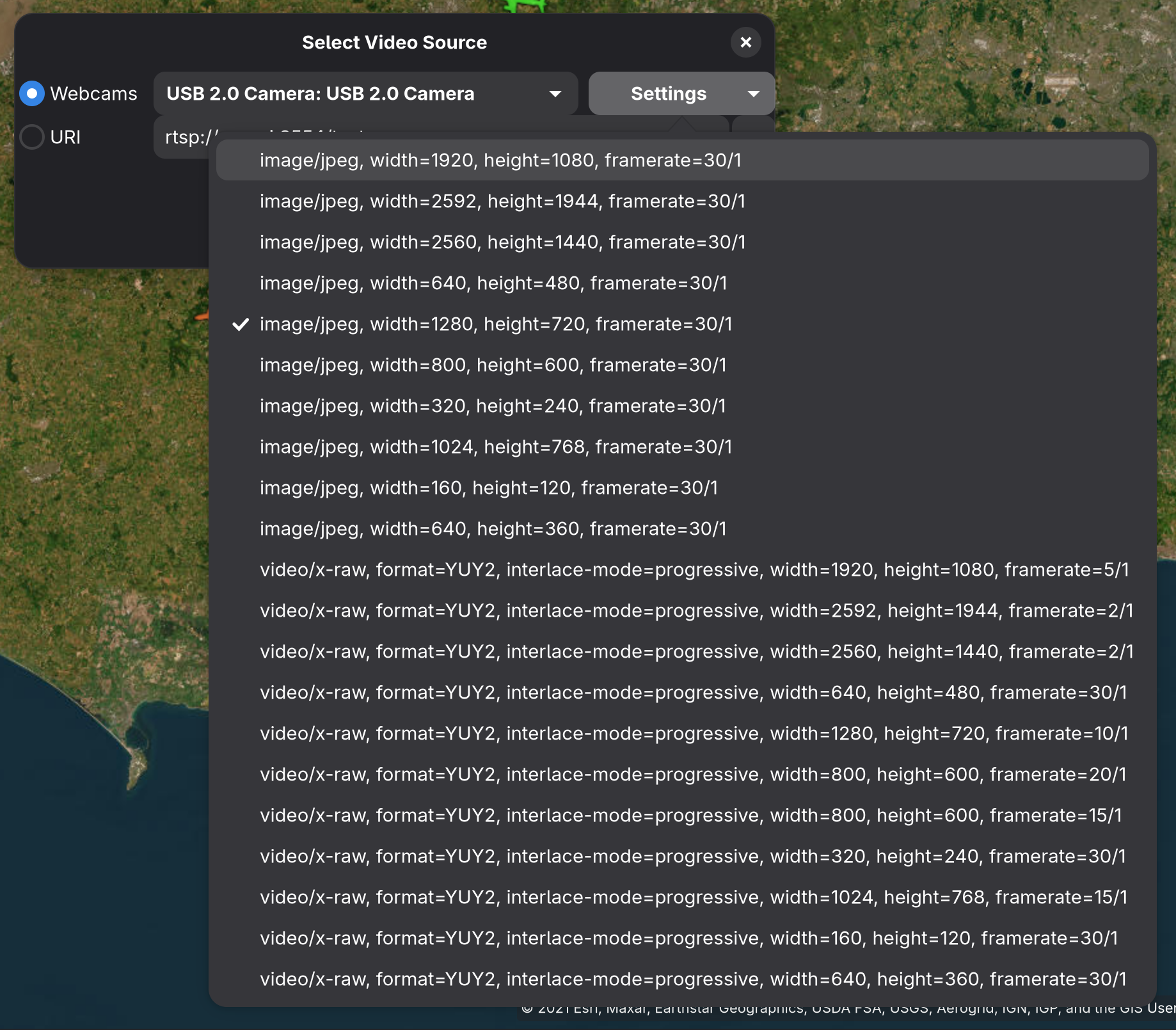

mwp requests camera capabilities from Gstreamer and presents them to the user when the "Settings" button clicked.

settings

If a capability is selected, it is passed on to GStreamer verbatim and stored for future use.

OS Specific#

The following GStreamer video sources (at least) are supported:

Linux. "Video4Linux" (v4l2src), pipewire (pipewiresrc) and libcamera (libcamerasrc)
FreeBSD. FreeBSD offers a video4linux (v4l2src) emulation that works with mwp.
Windows. ksvideosrc or mfvideosrc as detected / required.
MacOS. avfvideosrc.

mwp introspects Gstreamer for the required video source and parameters, no user input is required, other than the device specific GStreamer plugin(s) must be installed.

FPV Mode#

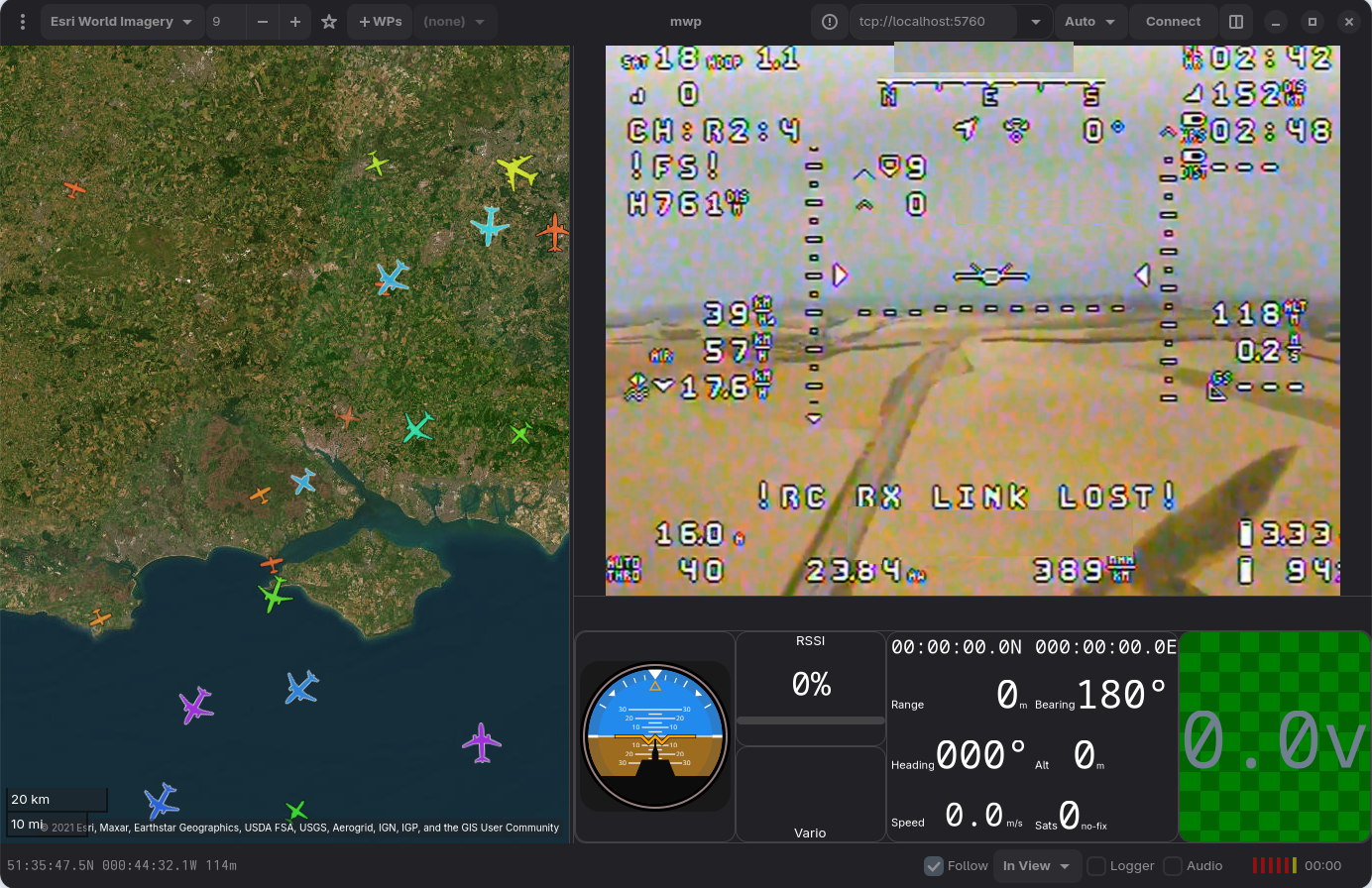

FPV mode provides a paned view of a camera feed. The user can switch between "Standard" and "FPV Mode" views from the "View / FPV Mode" menu option or by assigning a shortcut key, for example in ~/.config/mwp/accels, the "action" name is "modeswitch", which is here mapped to F12.

modeswitch F12

The panel will switch as necesary.

FPV uses the following order to determine what to show (if anything).

If the windowed player was active, that stream is transferred to the video pane.
Else, if available, the last stream show in the FPV pane is invoked.

Using RTSP for camera parameter definitions#

If the user is using a remote camera, if the camera is not detected or if using Windows with mwp' "fallback" player , then a RTSP server can be used to feed the camera stream to mwp.

go2rtc is a useful RTSP server that supports numerous video options, including format conversion.

Linux, FreeBSD#

The following sample configuration file go2rtc.yaml illustrates some of the possibilities:

streams:
  usbcam1: v4l2:device?video=/dev/video0&input_format=mjpeg&video_size=1280x720&framerate=30
  usbcam2: ffmpeg:/dev/video0#video=h264#audio=aac#scale=1280:720
  usbcam3: v4l2:device?video=/dev/video0&input_format=mjpeg&video_size=640x480&framerate=10

  file0: exec:ffmpeg -hide_banner -re -stream_loop -1 -i /home/jrh/Videos/Daria-SurfKayak.mp4 -vcodec h264 -rtsp_transport tcp -f rtsp {output}
  file1: ffmpeg:/home/jrh/Videos/18_ft_Skiff_in_heavy_wind.mp4
  test: exec:ffmpeg -hide_banner -re -f lavfi -i testsrc -vcodec h264 -rtsp_transport tcp -f rtsp {output}

The camera is a 10 year old "Mobius"; remember them?

usbcam1 : "Normal" camera configuration (MJPEG feed).
usbcam2 : Camera feed is transcoded using ffmpeg to H264 prior to transmission.
usbcam3 : Sets the camera resolution.

And some test streams:

file0 : Streams a webm video in a loop
file1 : Streams a mp4 video
test : Streams the ffmpeg "test card"

It is possible to start and stop go2rtc when mwp is started / quit using the atstart and atexit settings:

Adjust configuration file path for your environment:

atstart: go2rtc -c /home/jrh/.config/go2rtc/go2rtc.yaml
atexit: pkill -f go2rtc.exe

Windows#

Example go2rtc configuration file for USB webcam:

streams:
  webcam0: ffmpeg:device?video=0#width=640#height=480#video=mjpeg
  webcam1: ffmpeg:device?video=Mobius#width=640#height=480#video=mjpeg
  webcam2: ffmpeg:device?video=0#width=640#height=480#video=h264

Each of the above lines refers to the same device (name/index reference), natural or trans-coded video). At least in the author's VM, it is necessary to downsize the video stream resolution to avoid ffmpeg overruns. This may not be necessary on a non-virtualised system.

Windows mwp settings to start / stop go2rtc#

atstart: go2rtc.exe -c c:/Users/win10/go2rtc.yaml'
atexit: taskkill.exe -f -im "go2rtc.exe"

It is recommended to use POSIX style forward slashes rather than Windows backslash in order to avoid any "backslash escape" issues.

Note that go2rtc and dependencies (ffmpeg etc.) must be on a PATH available to mwp.exe.

GStreamer debug#

Most failures / errors during replay are caused by missing GStreamer plugins. Gstreamer plugin provision is a runtime dependency that should be done by the user. The Windows' installer includes a (ridiculously) large selection of GStreamer plugins, but it's always possible that one is missing.

For the record, on Arch Linux, the following GStreamer packages appear adequate for all sources tested:

gstreamer
gst-plugins-ugly
gst-plugins-good
gst-plugins-base-libs
gst-plugins-base
gst-plugins-bad-libs
gst-plugins-bad
gst-plugin-webrtchttp
gst-plugin-rswebrtc
gst-plugin-rsrtp
gst-plugin-pipewire
gst-plugin-hlssink3
gst-plugin-gtk4
gst-libav

Package names / capabilities are OS dependent, the above list is a guide.

The following GStreamer tools are useful to test / debug video sources against installed GStreamer modules.

gst-device-monitor-1.0 : Discover device sources, e.g. Cameras.
gst-discoverer-1.0 : Discover stream properties.
gst-play-1.0 : Play a stream from a URI
gst-launch-1.0 : Play a pipeline. Note that mwp reports its constructed pipeline in mwp_stderr*.txt

Note: The Windows installer includes these tools.

Examples of GStreamer debug tools.#

Alas, these are all success cases.

`gst-device-monitor`#

Linux, pipewire#

$ gst-device-monitor-1.0 Video/Source
Probing devices...

Device found:

    name  : Mobius (V4L2)
    class : Video/Source
    caps  : image/jpeg, width=1280, height=720, framerate=30/1
            image/jpeg, width=640, height=480, framerate=30/1
            image/jpeg, width=320, height=240, framerate=30/1
    properties:
        is-default = true
        api.v4l2.cap.bus_info = usb-0000:00:14.0-4.4
        api.v4l2.cap.capabilities = 84a00001
        api.v4l2.cap.card = Mobius
        api.v4l2.cap.device-caps = 04200001
        api.v4l2.cap.driver = uvcvideo
        api.v4l2.cap.version = 6.16.5
        api.v4l2.path = /dev/video0
        device.api = v4l2
        device.devids = [ 20736 ]
        device.id = 77
        device.product.id = 0x1002
        device.vendor.id = 0x0603
        factory.name = api.v4l2.source
        media.class = Video/Source
        node.description = Mobius (V4L2)
        node.name = v4l2_input.pci-0000_00_14.0-usb-0_4.4_1.0
        node.nick = Mobius
        node.pause-on-idle = false
        object.path = v4l2:/dev/video0
        priority.session = 1000
        factory.id = 11
        client.id = 41
        clock.quantum-limit = 8192
        node.loop.name = data-loop.0
        media.role = Camera
        node.driver = true
        object.id = 75
        object.serial = 601
    gst-launch-1.0 pipewiresrc target-object=601 ! ...

Linux, libcamera#

Also discovers the pipewiresrc option:

$ gst-device-monitor-1.0 Video/Source
Probing devices...

Device found:

    name  : Mobius (V4L2)
        ...
        object.serial = 57
    gst-launch-1.0 pipewiresrc target-object=57 ! ...

Device found:

    name  : \_SB_.PCI0.S11_.S00_-4:1.0-0603:1002
    class : Source/Video
    caps  : image/jpeg, width=320, height=240
            image/jpeg, width=640, height=480
            image/jpeg, width=1280, height=720
    properties:
        api.libcamera.SystemDevices = < (gint64)20736 >
        api.libcamera.PixelArrayActiveAreas = < (int)0, (int)0, (int)1280, (int)720 >
        api.libcamera.PixelArraySize = < (int)1280, (int)720 >
        api.libcamera.Location = CameraLocationExternal
        api.libcamera.Model = Mobius
    gst-launch-1.0 libcamerasrc camera-name='\_SB_.PCI0.S11_.S00_-4:1.0-0603:1002' ! ...

Note user-hostile name provided by libcamera.

Windows#

PS C:\Users\win10> $env:Path += ";C:\Program Files\mwptools\bin"
PS C:\Users\win10> gst-device-monitor-1.0.exe Video/Source
Probing devices...


Device found:

        name  : Mobius
        class : Video/Source
        caps  : image/jpeg, width=1280, height=720, framerate=30/1, pixel-aspect-ratio=1/1
                image/jpeg, width=640, height=480, framerate=30/1, pixel-aspect-ratio=1/1
                image/jpeg, width=320, height=240, framerate=30/1, pixel-aspect-ratio=1/1
        gst-launch-1.0 ksvideosrc device-path="\\\\\?\\usb\#vid_0603\&pid_1002\&mi_00\#7\&1251d048\&0\&0000\#\{6994ad05-93ef-11d0-a3cc-00a0c9223196\}\\global" ! ...

MacOS#

$ gst-device-monitor-1.0 Video/Source
Probing devices...


Device found:

    name  : Mobius
    class : Video/Source
    caps  : video/x-raw(memory:GLMemory), width=1280, height=720, format={ (string)UYVY, (string)YUY2 }, framerate=30/1, texture-target=rectangle
            video/x-raw(memory:GLMemory), width=640, height=480, format={ (string)UYVY, (string)YUY2 }, framerate=30/1, texture-target=rectangle
            video/x-raw(memory:GLMemory), width=320, height=240, format={ (string)UYVY, (string)YUY2 }, framerate=30/1, texture-target=rectangle
            video/x-raw, width=1280, height=720, format={ (string)UYVY, (string)YUY2, (string)NV12, (string)ARGB, (string)BGRA }, framerate=30/1
            video/x-raw, width=640, height=480, format={ (string)UYVY, (string)YUY2, (string)NV12, (string)ARGB, (string)BGRA }, framerate=30/1
            video/x-raw, width=320, height=240, format={ (string)UYVY, (string)YUY2, (string)NV12, (string)ARGB, (string)BGRA }, framerate=30/1
    properties:
        device.api = avf
        avf.unique_id = 0x1dd0000006031002
        avf.model_id = UVC Camera VendorID_1539 ProductID_4098
        avf.has_flash = false
        avf.has_torch = false
        avf.manufacturer = C-DUTEK
    gst-launch-1.0 avfvideosrc device-index='0' ! ...

`gst-discoverer-1.0`#

$ gst-discoverer-1.0 rtsp://zeropi:8554/test
Analyzing rtsp://zeropi:8554/test
Done discovering rtsp://zeropi:8554/test

Properties:
  Duration: 99:99:99.999999999
  Seekable: no
  Live: yes
  unknown #0: application/x-rtp
    video #1: H.264 (High 4:4:4 Profile)
      Stream ID: a2cb945a1d6a987694fb1a99ae73d9531ecca8c82ec7d7b1a50c27d95f26893f/video:0:0:RTP:AVP:96
      Width: 320
      Height: 240
      Depth: 24
      Frame rate: 25/1
      Pixel aspect ratio: 1/1
      Interlaced: false
      Bitrate: 0
      Max bitrate: 0

Play camera source discovered above#

$ gst-play-1.0 v4l2:///dev/video0
Press 'k' to see a list of keyboard shortcuts.
Now playing v4l2:///dev/video0
Pipeline is live.
Redistribute latency...
ERROR Output window was closed for v4l2:///dev/video0
ERROR debug information: ../gstreamer/subprojects/gst-plugins-base/sys/xvimage/xvimagesink.c(586): gst_xv_image_sink_handle_xevents (): /GstPlayBin3:playbin/GstPlaySink:playsink/GstBin:vbin/GstAutoVideoSink:videosink/GstXvImageSink:videosink-actual-sink-xvimage
Reached end of play list.

Launch mwp constructed pipelines#

Standard, (without MWP_SHOW_FPS)
Logged as 08:05:09.573216 Playbin: pipewiresrc target-object=226 ! image/jpeg, width=1280, height=720, framerate=30/1 ! decodebin ! autovideoconvert ! gtk4paintablesink sync=false
Note: If Gstreamer on Linux reports a pipewiresrc, then mwp uses that, otherwise it will use v4l2src (see next example). Or libcamerasrc.

$ gst-launch-1.0 pipewiresrc target-object=226 ! image/jpeg, width=1280, height=720, framerate=30/1 ! decodebin ! autovideoconvert !  gtk4paintablesink sync=false
Setting pipeline to PAUSED ...
MESA-INTEL: warning: Haswell Vulkan support is incomplete
MESA-INTEL: warning: ../mesa-25.2.2/src/intel/vulkan_hasvk/anv_formats.c:759: FINISHME: support YUV colorspace with DRM format modifiers
MESA-INTEL: warning: ../mesa-25.2.2/src/intel/vulkan_hasvk/anv_formats.c:790: FINISHME: support more multi-planar formats with DRM modifiers
Pipeline is live and does not need PREROLL ...
Got context from element 'gtk4paintablesink0': gst.gl.GLDisplay=context, gst.gl.GLDisplay=(GstGLDisplay)"\(GstGLDisplayWayland\)\ gldisplaywayland0";
Got context from element 'gtk4paintablesink0': gst.gl.app_context=context, context=(GstGLContext)"\(GstGLWrappedContext\)\ glwrappedcontext0";
Pipeline is PREROLLED ...
Setting pipeline to PLAYING ...
New clock: pipewireclock0
Redistribute latency...
ERROR: from element /GstPipeline:pipeline0/GstGtk4PaintableSink:gtk4paintablesink0: Output window was closed
Additional debug info:
video/gtk4/src/sink/imp.rs(861): gstgtk4::sink::imp::PaintableSink::create_window::{{ closure }}::{{ closure }} (): /GstPipeline:pipeline0/GstGtk4PaintableSink:gtk4paintablesink0
Execution ended after 0:00:04.747077581
Setting pipeline to NULL ...
Freeing pipeline ...

Debugging framerate with MWP_SHOW_FPS

Logged as: 10:09:23.943487 Playbin: v4l2src device=/dev/video0 ! image/jpeg, width=1280, height=720, framerate=30/1 ! decodebin ! autovideoconvert ! fpsdisplaysink video-sink=gtk4paintablesink text-overlay=true sync=false

$ gst-launch-1.0 v4l2src device=/dev/video0 ! image/jpeg, width=1280, height=720, framerate=30/1 ! decodebin ! autovideoconvert ! fpsdisplaysink video-sink=gtk4paintablesink text-overlay=true sync=false
Setting pipeline to PAUSED ...
MESA-INTEL: warning: Haswell Vulkan support is incomplete
MESA-INTEL: warning: ../mesa-25.2.2/src/intel/vulkan_hasvk/anv_formats.c:759: FINISHME: support YUV colorspace with DRM format modifiers
MESA-INTEL: warning: ../mesa-25.2.2/src/intel/vulkan_hasvk/anv_formats.c:790: FINISHME: support more multi-planar formats with DRM modifiers
Pipeline is live and does not need PREROLL ...
Got context from element 'gtk4paintablesink0': gst.gl.GLDisplay=context, gst.gl.GLDisplay=(GstGLDisplay)"\(GstGLDisplayWayland\)\ gldisplaywayland0";
Got context from element 'gtk4paintablesink0': gst.gl.app_context=context, context=(GstGLContext)"\(GstGLWrappedContext\)\ glwrappedcontext0";
Pipeline is PREROLLED ...
Setting pipeline to PLAYING ...
New clock: GstSystemClock
Redistribute latency...
ERROR: from element /GstPipeline:pipeline0/GstFPSDisplaySink:fpsdisplaysink0/GstGtk4PaintableSink:gtk4paintablesink0: Output window was closed
Additional debug info:
video/gtk4/src/sink/imp.rs(861): gstgtk4::sink::imp::PaintableSink::create_window::{{ closure }}::{{ closure }} (): /GstPipeline:pipeline0/GstFPSDisplaySink:fpsdisplaysink0/GstGtk4PaintableSink:gtk4paintablesink0
Execution ended after 0:00:07.353664499
Setting pipeline to NULL ...
Freeing pipeline ...

Playing Video in mwp#

Video Player Requirements#

Live stream mode (GCS)#

Camera Capabilities#

OS Specific#

FPV Mode#

Using RTSP for camera parameter definitions#

Linux, FreeBSD#

Windows#

Windows mwp settings to start / stop go2rtc#

GStreamer debug#

Examples of GStreamer debug tools.#

gst-device-monitor#

Linux, pipewire#

Linux, libcamera#

Windows#

MacOS#

gst-discoverer-1.0#

Play camera source discovered above#

Launch mwp constructed pipelines#

`gst-device-monitor`#

`gst-discoverer-1.0`#
